What is a Content Delivery Network (CDN)? How CDNs Work | A Complete Technical Guide

Every second your website takes to load, you’re losing users. Research consistently shows that even a one-second delay in page load time can reduce conversions by up to 7%. For global audiences people in Tokyo, Lagos, or São Paulo trying to reach a server sitting in a Virginia data center those delays can stretch into seconds, not milliseconds. That’s the problem content delivery networks were built to solve.

A content delivery network (CDN) is one of the most foundational pieces of modern internet infrastructure, quietly powering the fast, reliable web experiences you use every day. Whether you’re streaming a Netflix series, loading a product page on Amazon, or scrolling through your Facebook feed, a CDN is almost certainly involved.

What is a CDN?

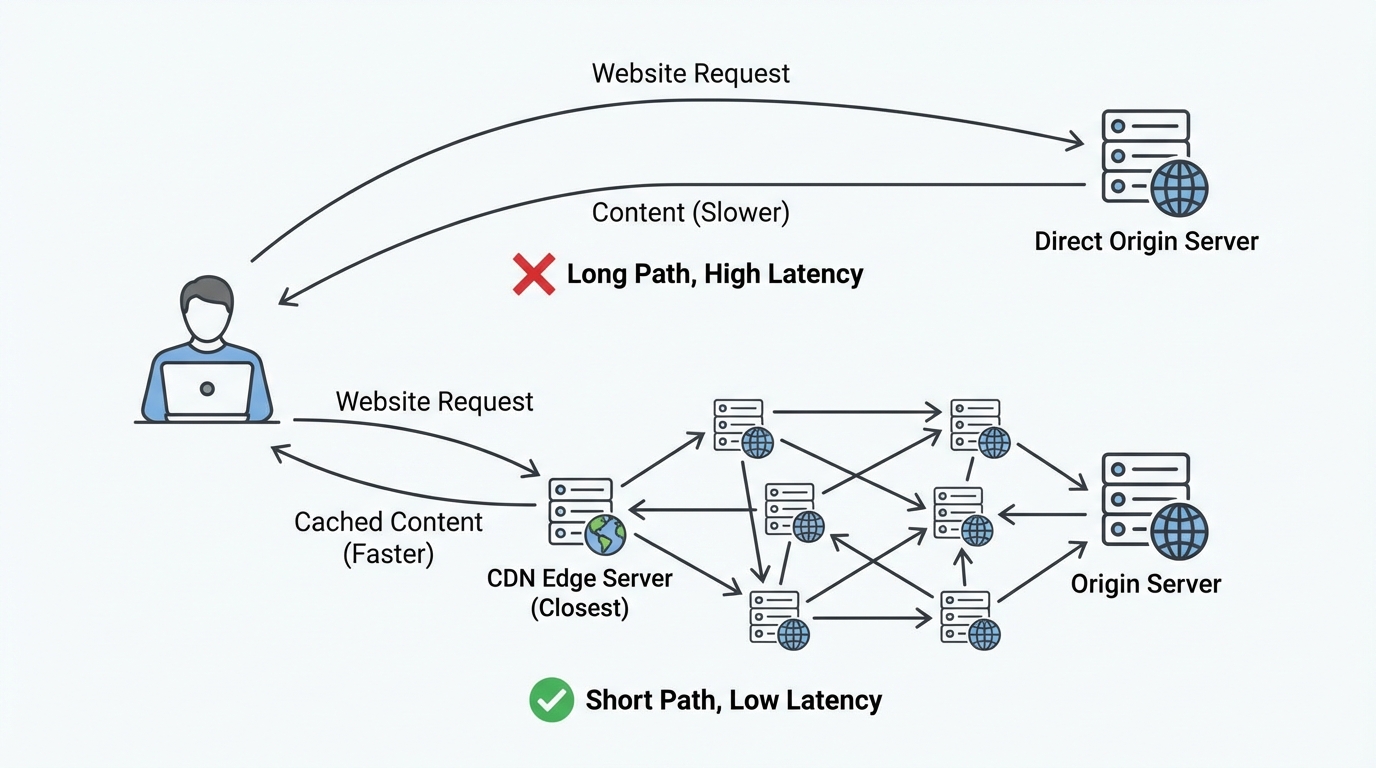

A content delivery network (CDN) sometimes called a content distribution network is a geographically distributed network of servers designed to deliver internet content to users as fast as possible by serving it from a location physically close to them.

Instead of every user request traveling all the way back to a single origin server, a CDN caches copies of your content on servers spread across dozens or hundreds of locations worldwide. When a user requests your page, the CDN routes that request to the nearest server called an edge server or point of presence (POP) dramatically reducing the time it takes for content to arrive.

CDNs serve a wide range of assets: HTML pages, JavaScript files, stylesheets, images, videos, fonts, API responses, downloadable software, and more. Essentially, any content traveling over the internet benefits from CDN optimization.

A Brief History of CDN Technology

CDNs didn’t appear fully formed. They were invented to solve a specific crisis and have been reinvented several times since.

1998 The origin.  Akamai Technologies was founded at MIT by Tom Leighton and Danny Lewin, directly inspired by Tim Berners-Lee’s prediction that the internet would face a “World Wide Wait.” Akamai’s algorithm-based delivery network became the first commercial CDN, serving static files for major media companies and software vendors.

Early 2000s Specialization.  CDNs expanded to serve software downloads, game patches, and large file distribution. The business model was simple: pay per gigabyte delivered, offload origin, go faster.

2008–2015 The video explosion.  YouTube and Netflix’s shift to streaming fundamentally changed CDN demand. Adaptive bitrate streaming (ABR) became the standard, requiring CDNs to handle millions of concurrent video streams and massive infrastructure investment.

2016-present – The edge platform era.  CDNs stopped being “cache servers” and became full-edge platforms. Cloudflare Workers (2017) and Fastly Compute@Edge let developers run arbitrary code at CDN Points of Presence. Security features WAF, DDoS mitigation, bot management became as important as delivery speed.

Now Edge computing infrastructure.  The modern CDN is converging with cloud computing. The PoP is no longer just a cache; it’s a compute node. Running a serverless function 20ms from the user often beats running application logic 200ms away on a central cloud server.

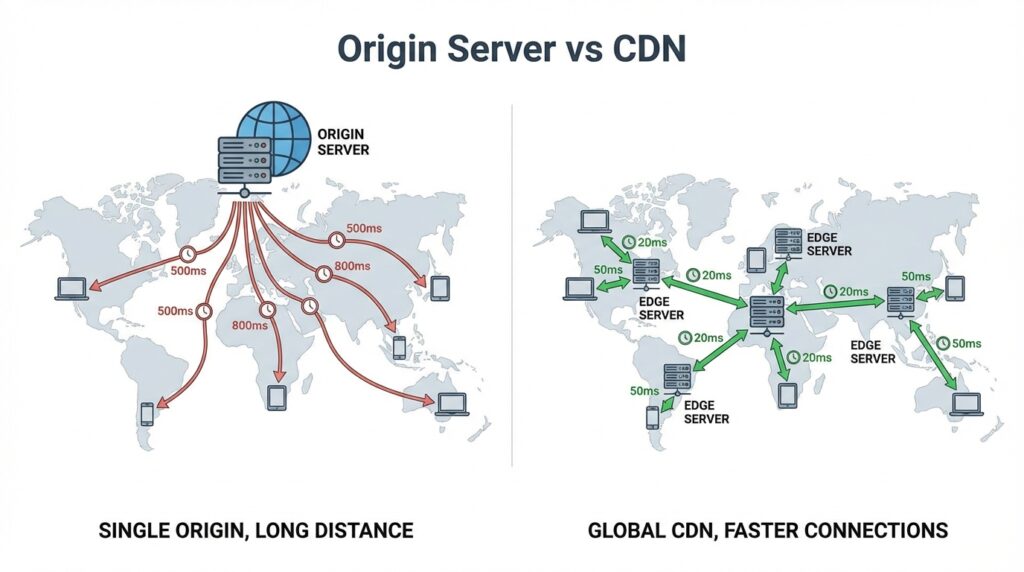

Is a CDN the Same as a Web Host?

This is one of the most common points of confusion and the answer is no.

A web host (or origin server) is where your website actually lives your application code, database, user data, and original files. Traditional web hosting is centralized: one server in one location handles all requests.

A CDN is not a replacement for web hosting it’s a complement to it. The CDN sits in front of your origin server, fulfilling requests from cached copies whenever possible. Your origin server still exists; the CDN reduces how often and how far traffic has to reach it.

Think of your origin server as the warehouse where your inventory is stored, and the CDN as the network of local fulfillment centers that ship orders from the closest location to each customer.

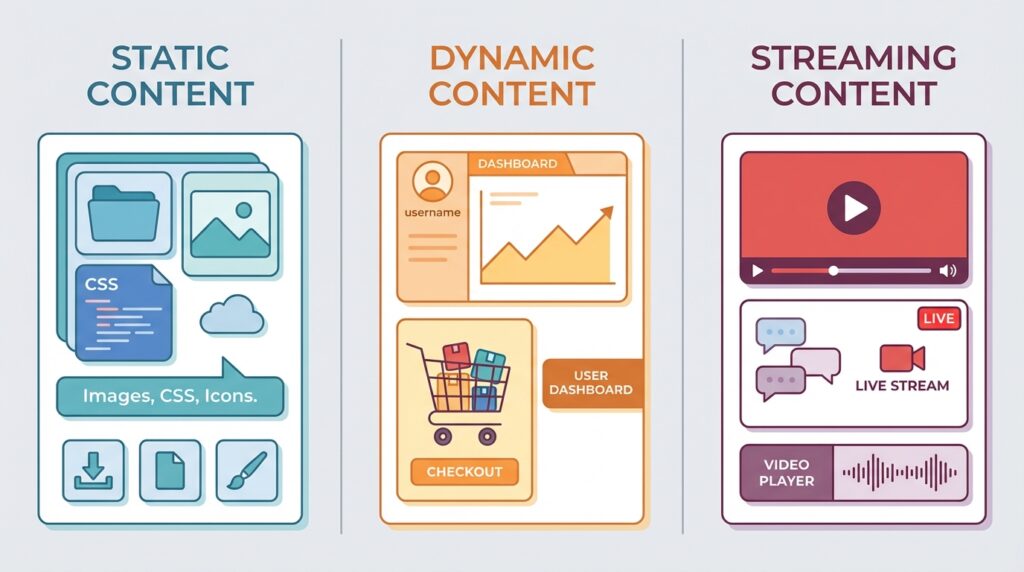

What Types of Content Can a CDN Deliver?

CDNs deliver two core categories of content and a third that’s increasingly important for modern applications.

Static Content

Static content is any file that delivers identically to every user: images, CSS stylesheets, JavaScript bundles, web fonts, PDFs, video files, and software downloads.

Because static content is identical for every request, it caches perfectly. Cache hit ratios of 90%+ are achievable. For most websites, static assets make up 70–80% of total page weight meaning the CDN handles the heavy lifting for the majority of every page load.

Dynamic Content

Dynamic content changes per user or per request: shopping carts, user dashboards, personalized recommendations, social media feeds, and login states. You can’t cache a shopping cart its contents are unique to each visitor.

Modern CDNs handle dynamic content through three approaches: dynamic acceleration (persistent connections to origin), Edge Side Includes (ESI) (assembling pages from cached and live fragments at the edge), and edge compute functions (running application logic directly at the PoP, eliminating the origin round-trip).

Streaming Content

Live video, WebSocket connections, real-time gaming data, and event-driven streams are a distinct third category. Streaming CDNs maintain persistent edge connections, minimize buffering through adaptive bitrate (ABR) delivery, and use low-latency protocols like LL-HLS and WebRTC.

Gaming CDNs must deliver packets with latency under 10ms a requirement that demands specialized infrastructure beyond standard HTTP caching.

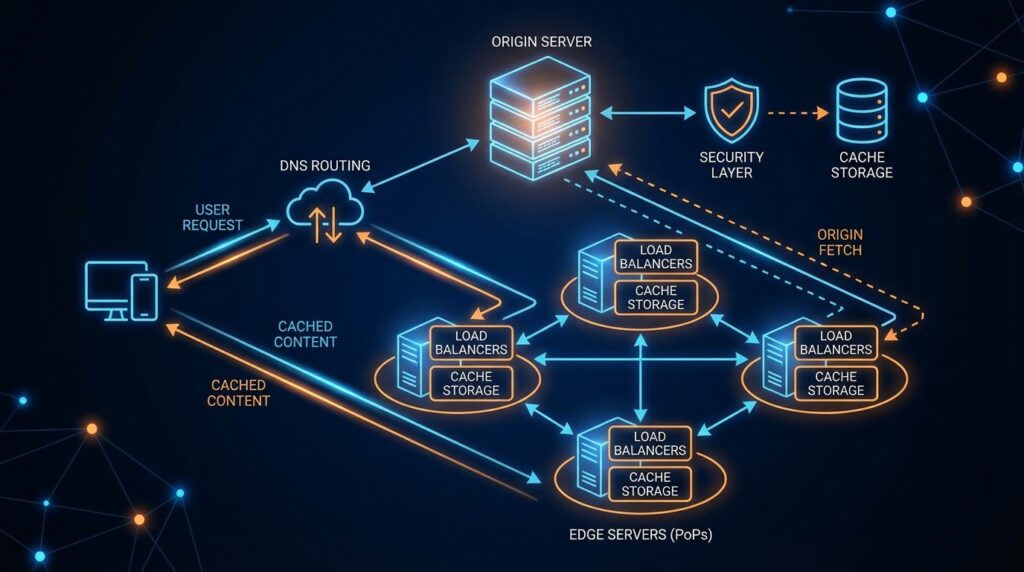

Key Components of a CDN

Understanding the building blocks of a CDN clarifies how all the pieces fit together. Every CDN regardless of provider is assembled from the same core components.

• Origin Server Your primary web server: the authoritative source of all content. The CDN does not replace it; it reduces how often the world needs to reach it.
• Edge Servers (PoPs) Distributed nodes positioned at Internet Exchange Points, carrier facilities, and major metro data centers worldwide. These are the servers that actually serve cached content to your users.
• Origin Shield An intermediate regional caching layer between edge PoPs and the origin. When edge nodes have a cache miss, they check the shield before contacting origin reducing origin load dramatically.
• DNS Infrastructure Routes each user request to the optimal edge server using Anycast routing and DNS-based load balancing, factoring in location, server load, and network conditions all in milliseconds.
• Load Balancers Distribute traffic across multiple edge servers within a single PoP, ensuring no individual server becomes a bottleneck.
• Cache Storage Where content copies live at each edge node, governed by TTL values, cache-control headers, and CDN-level caching rules.
• Management & Control Plane Configure cache policies, security rules, purge content, review analytics, and manage edge compute logic via web dashboard, REST API, or CLI.
• Security Layer WAF, DDoS mitigation, bot management, TLS termination, and rate limiting now bundled alongside delivery as standard in enterprise CDNs.

How Does a CDN Work?

CDNs operate by placing intermediary servers between your origin and your users, using a combination of caching, intelligent routing, and protocol-level optimizations to accelerate content delivery.

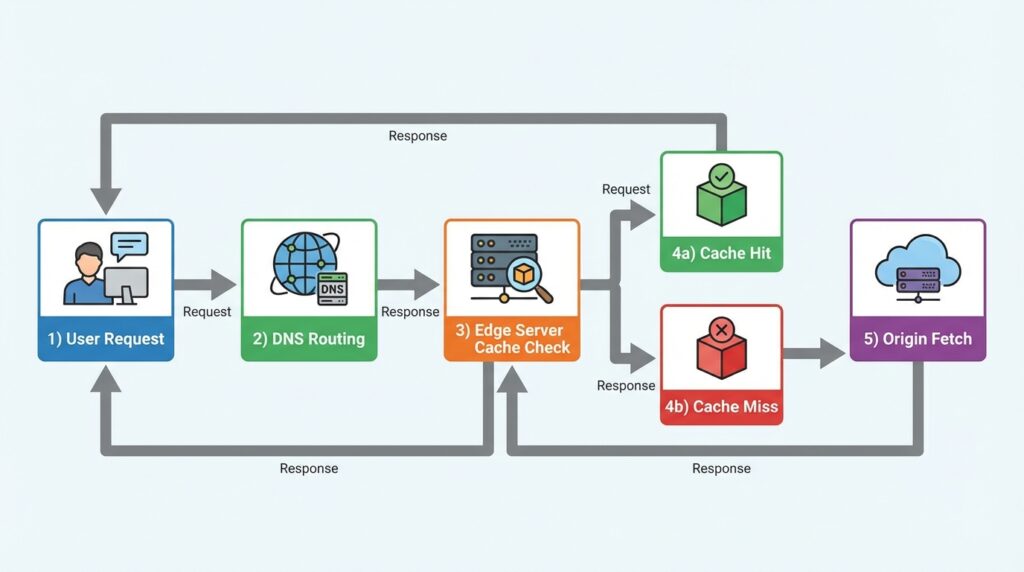

The CDN Request Flow (Step by Step)

Here is exactly what happens when a user loads a page served through a CDN:

Why this matters: Only the very first request for any given asset in any given region ever reaches your origin. This is why CDN cache hit ratios routinely exceed 90% for well-configured deployments.

Origin Servers

The origin server is your website’s primary server the canonical source of all content. A well-configured CDN typically handles 70–95% of all requests without ever touching the origin, a metric known as the cache hit ratio.

Every request that bypasses the CDN is slower for the user, more expensive in bandwidth, and a higher load on your infrastructure.

Edge Servers

Edge servers are the servers physically distributed across data centers worldwide at Internet Exchange Points (IXPs), in major metro areas, and at carrier facilities.

They cache content, perform real-time optimizations (CSS/JS minification, image compression, Brotli encoding, TLS handling), and increasingly run application logic via edge compute.

DNS Servers

DNS determines which edge server handles each request. CDN providers use Anycast routing (faster routing at the network layer with no extra DNS round-trip) and DNS-based load balancing (more flexible applies business logic like routing by device type or user tier).

Many enterprise CDNs use both: Anycast for speed, DNS logic for granularity. The difference is meaningful: Anycast routing decisions happen in the network fabric itself, while DNS-based routing adds 20–100ms of resolution overhead.

Cache Hierarchy: The Tiered Model

Most enterprise CDNs use a tiered caching model rather than a flat architecture:

• L1 edge PoPs outermost layer, hundreds of nodes globally, closest to users
• L2 regional shield nodes between edge PoPs and origin; absorb misses from multiple L1 nodes
• Origin only serves what neither L1 nor L2 has cached

This hierarchy is why enterprise CDNs achieve 90%+ cache hit ratios even for long-tail content. Cloudflare calls this “Tiered Cache.” AWS CloudFront calls it “Origin Shield.” It’s one of the highest-impact CDN configuration choices available.

Types of CDNs

Public CDNs

Shared infrastructure offered as a commercial service by providers like Akamai, Cloudflare, Amazon CloudFront, and Fastly. The most accessible option and the right starting point for most businesses.

Private CDNs

Built and operated by large organizations for their own use. Netflix (Open Connect) and YouTube (Google Global Cache) are famous examples. Full control, but requires significant capital investment and specialized expertise.

Peer-to-Peer (P2P) CDNs

Leverage end-user devices as delivery nodes when a user downloads content, a portion of their bandwidth serves that content to nearby users. The P2P CDN market was valued at $2.6 billion in 2024, growing at 14.8% CAGR.

Hybrid CDNs

Combine multiple delivery approaches traditional CDN with P2P, private infrastructure, or multi-CDN switching. Multi-CDN architectures are now used by over 60% of major streaming platforms.

Pull CDNs

The CDN pulls content from your origin on demand when the first user requests content not yet in the edge cache. Most common configuration for web content.

Tools like Warmup Cache Request exist specifically to pre-populate edge caches before real users arrive.

Push CDNs

You proactively upload content to the CDN’s edge servers before any user requests it. Ideal for large, predictable static files software packages, video files, game patches where guaranteed availability at every edge location from launch is essential.

What are the Benefits of Using a CDN?

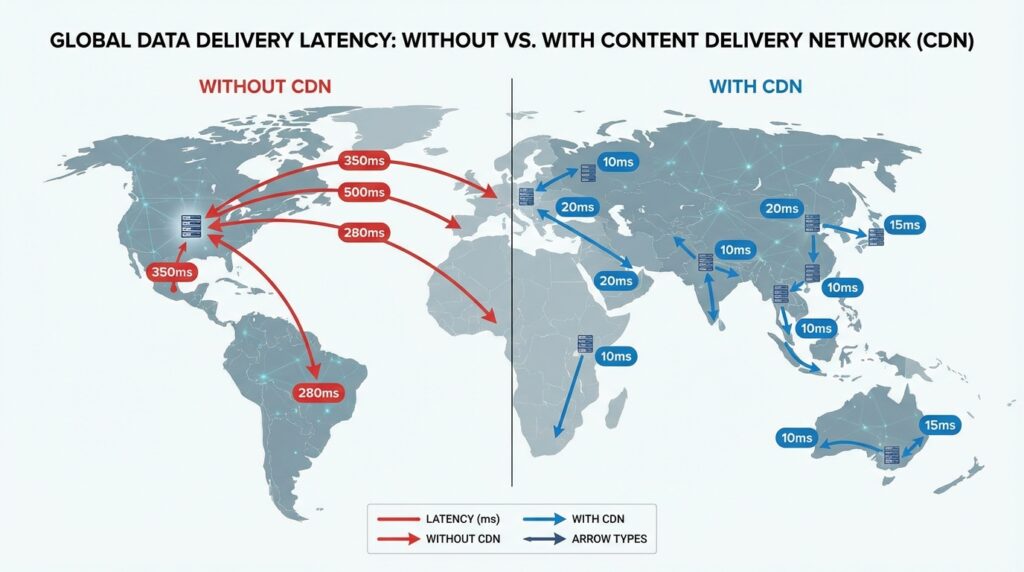

Latency – Improving Website Load Times

Latency is the time it takes for a data packet to travel from point A to point B. For a user in Sydney loading a page from a server in New York, the round-trip distance alone introduces ~160ms of irreducible latency before a single byte of content is transferred.

CDNs attack latency on multiple fronts:

• Geographic proximity Serving content from an edge server 50km away vs. 15,000km away eliminates most network transit time.
• HTTP/2 and HTTP/3 Enable multiplexing (multiple requests over one connection); HTTP/3 eliminates head-of-line blocking entirely.
• TLS 1.3 with 0-RTT resumption Returning users send application data on the very first packet zero additional round trips.
• Brotli compression 15–20% better compression ratios than gzip, reducing total bytes transferred.
• Image optimization WebP/AVIF conversion, responsive resizing, and lazy loading coordination.
• Predictive prefetching Cloudflare Speed Brain preloads likely-next-page assets into the browser cache, enabling near-instant subsequent navigation.

Combined effect: a well-CDN-optimized site can deliver a first meaningful paint in under 500ms for most global users an experience impossible to achieve with single-origin architecture.

Reliability and Redundancy – How Does a CDN Keep a Website Always Online?

Single-origin hosting is a single point of failure. CDNs solve this through geographic distribution and intelligent failover.

Anycast routing means multiple edge servers share the same IP address if one node goes offline, BGP routing automatically redirects traffic to the next closest operational node, often within milliseconds.

Health monitoring continuously checks edge server status, factoring in current load and network conditions to make real-time routing decisions.

Origin failover policies (stale-while-revalidate, stale-if-error) allow CDNs to serve cached content even when the origin is unavailable critical for 24/7 operations.

Load balancing distributes requests across multiple edge servers within a PoP, preventing any single server from becoming a bottleneck during traffic spikes.

Data Security – How Does a CDN Protect Data?

Modern CDNs have evolved into comprehensive security platforms.

• TLS/SSL Encryption TLS 1.3 with 0-RTT resumption and auto-renewed Let’s Encrypt certificates protect all traffic with minimal overhead.
• DDoS Mitigation Works at network (Layer 3/4) and application (Layer 7) levels, spreading attack traffic across hundreds of nodes. Cloudflare mitigated a record 5.6 Tbps attack in 2024.
• Web Application Firewall (WAF) Filters OWASP Top 10 threats at the edge before they reach your application server, updatable in real time across all nodes.
• Supply Chain Attack Defense Subresource integrity checking guards against compromised third-party scripts (e.g., the 2024 Polyfill.io incident).
• Bot Management Behavioral analysis distinguishes legitimate users from credential stuffers, scrapers, and DDoS bots.
• Access Controls Signed URLs, token-based auth, and geographic blocking for content licensing and GDPR compliance.

Reducing Bandwidth Costs

CDNs reduce origin egress by 70–95%. A site serving 100GB/day from origin at $0.09/GB costs ~$8,100/month. With a CDN achieving 95% cache hit ratio, origin egress drops to ~$405/month a potential saving of over $2,700/month.

Increasing Content Availability and Redundancy

CDNs provide inherent redundancy through geographic distribution. If a single edge server or data center fails, Anycast failover routes traffic to the next nearest operational server.

Some CDNs continue serving stale cached content if the origin goes entirely offline keeping your site alive during outages.

Improving Website Security

In 2024, Cloudflare mitigated the largest DDoS attack ever recorded at 5.6 Tbps a scale that would instantly overwhelm any single-origin server.

The 2024 Polyfill.io supply chain compromise demonstrated the value of CDN-level subresource integrity checking. HTTPS by default, TLS 1.3 with 0-RTT resumption, and automatic Let’s Encrypt certificate renewal are now standard on every reputable CDN.

Improve Customer Experiences

53% of mobile users abandon a site that takes more than three seconds to load. CDNs make performance consistent for all users regardless of location directly affecting CSAT, retention, and revenue for e-commerce sites, streaming platforms, and SaaS applications.

Offload Traffic

By handling the majority of user requests at the edge, CDNs dramatically reduce workload on your origin server.

During traffic spikes a Black Friday sale, a viral post, a major product launch a CDN provides on-demand scalability that your origin server alone could never match.

CDNs and Edge Computing

Edge computing means running application logic at CDN Points of Presence rather than on a central server.

Instead of a user request traveling to your application server and back 200–400ms for distant users a serverless function running at a CDN PoP 20ms away handles the request locally.

The products are real and production-ready today:

• Cloudflare Workers Deploy JavaScript and WebAssembly to 300+ edge locations with a single command.
• Fastly Compute@Edge Supports Rust and JavaScript compiled to WebAssembly.
• AWS Lambda@Edge / CloudFront Functions Run Node.js logic at CloudFront PoPs.
• Akamai EdgeWorkers Edge compute across Akamai’s global network.

Practical use cases: A/B testing at the edge (zero origin involvement), JWT authentication before requests reach your application, real-time image resizing on demand, sub-millisecond bot detection, and geolocation-based content routing.

Edge compute is priced per request in fractions of a cent with generous free tiers. Execution time limits (5–50ms) and memory constraints mean it complements rather than replaces origin application servers. For developers evaluating CDN providers in 2026, edge compute capability is a baseline expectation.

CDNs and AI

Artificial intelligence is reshaping CDN infrastructure in two distinct ways one on the delivery side, one on the security side.

On the delivery side, AI is being used to optimize caching decisions in real time. Traditional CDNs apply static TTL rules to decide what to cache. AI-driven CDNs analyze traffic patterns, predict which content is likely to be requested next, and proactively warm caches at the edge before users arrive a technique called predictive prefetching.

Cloudflare’s Speed Brain uses machine learning to identify likely next-page navigations and preloads them into the browser cache, achieving near-instant subsequent page loads.

CDN providers are also using AI to dynamically adjust routing decisions in real time based on predicted congestion patterns rerouting traffic before slowdowns occur rather than reacting after.

On the security side, AI is fundamentally changing how CDNs handle bot traffic. Traditional bot management relied on signature-based detection and known IP blocklists approaches sophisticated bots easily evade. AI-powered bot protection analyzes behavioral signals: mouse movements, typing patterns, request timing, browser fingerprints, and session behavior.

This allows CDNs to distinguish legitimate users, good bots (Googlebot, monitoring services), and malicious bots (credential stuffers, scrapers, DDoS bots) with far greater accuracy and fewer false positives.

As AI-generated traffic from LLM agents, crawlers, and automated tools grows as a share of internet traffic, AI-native bot detection at the CDN layer is becoming an essential defense for protecting origin infrastructure and maintaining analytics data integrity.

Real-World CDN Use Cases

CDNs are not abstract infrastructure. Here is how specific industries and companies depend on them today.

Video Streaming – Netflix

Netflix serves over 700 petabytes of data daily to subscribers in 190 countries. Rather than relying on third-party CDNs at that volume, Netflix built its own Open Connect CDN, placing dedicated appliances directly inside ISP networks worldwide.

The majority of Netflix traffic never traverses the public internet it moves from ISP-embedded cache to subscriber device.

E-Commerce at Scale – Amazon

Amazon uses Amazon CloudFront to serve product images, JavaScript, and CSS for one of the highest-traffic websites on earth.

Product image load speed directly affects add-to-cart rates CDN-optimized image delivery is a revenue-critical system, not a nice-to-have.

Live Sports Streaming

Major live sports events Super Bowl broadcasts, IPL cricket matches, World Cup streams represent some of the most demanding CDN workloads in existence: millions of concurrent viewers, zero tolerance for buffering, and a hard start time that can’t be spread across hours. Pre-positioned edge capacity and adaptive bitrate streaming absorb simultaneous demand spikes.

Global Software Distribution – Gaming

Game publishers distribute multi-gigabyte patches to hundreds of millions of players globally. A single major patch release can generate petabytes of total transfer within hours of launch. Push CDNs which pre-distribute content to all PoPs before release are essential for this workload.

SaaS and API Delivery

SaaS platforms serving global enterprise customers use CDNs for API acceleration. By routing API calls through CDN edge nodes with persistent connections to origin, and handling JWT authentication and rate limiting at the edge, platforms can cut API latency from 400ms to under 50ms for edge-handled operations.

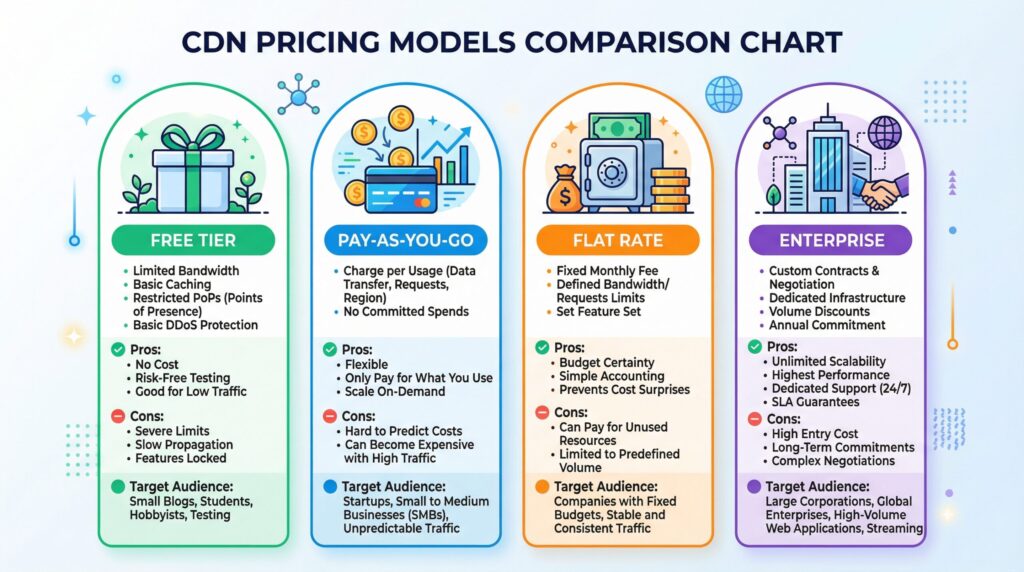

CDN Pricing Models

CDN pricing varies significantly by provider and model. Understanding the options before you commit is important the wrong model can make costs unpredictable at scale.

Per-GB (Pay-as-You-Go)

Charges for each gigabyte of data delivered from the edge. Amazon CloudFront is the most prominent example, with rates varying by region (typically $0.085–$0.20/GB, with volume discounts).

Ideal for variable or unpredictable traffic. Risk: a traffic spike or DDoS attack can generate an unexpected bill if you’re not monitoring egress carefully.

Flat-Rate / Committed Volume

A fixed monthly fee for a set bandwidth allocation. BunnyCDN and KeyCDN use this model, with rates as low as $0.01/GB with committed monthly minimums.

Most cost-predictable model for sites with stable traffic. Overage fees apply if you exceed your committed volume.

Free Tier with Paid Features

Cloudflare’s model: the free plan includes unlimited bandwidth, global CDN delivery, DDoS protection, and automatic SSL with no traffic caps.

Revenue comes from paid features: WAF rules, analytics, Workers edge compute, and advanced security. Paid plans start around $20/month (Pro) and scale to $200/month (Business) before enterprise pricing.

Enterprise / Custom Contracts

The norm for Akamai and Fastly at large scale pricing negotiated annually based on committed traffic volume, SLA requirements, and bundled security services.

Meaningful per-GB discounts in exchange for volume commitments, but longer procurement cycles and minimum annual spend thresholds.

Who Uses CDNs?

CDNs for End Users

As an end user, you benefit from CDNs without ever knowing they exist. Every fast-loading webpage, buffer-free video stream, and instantly responsive app is likely CDN-powered.

The technology is invisible by design its success is measured in milliseconds saved and errors avoided.

CDNs for Content Owners

Website operators, app developers, media companies, e-commerce vendors, digital publishers, online learning platforms, and SaaS providers use CDNs to deliver better global experiences.

Industries with particularly high CDN adoption include media and entertainment (~41% of CDN usage by revenue in 2024), e-commerce, financial services, healthcare, and online gaming.

CDNs for Network Service Providers

ISPs, mobile providers, and telecom operators deploy CDN infrastructure for their own networks a model called telco CDN or transparent caching.

By caching popular content inside their networks, ISPs reduce expensive upstream transit costs, lower congestion, and improve quality of experience for subscribers.

Why is a CDN Important?

The internet was not designed with today’s content demands in mind. Today’s reality: over 5.5 billion people use the internet globally, the average webpage exceeds 2MB, video accounts for 80%+ of all internet traffic, users expect sub-second response times, and cyberattacks are more frequent than ever.

CDNs bridge the gap between the internet’s original architecture and these modern demands. The market reflects this: the global CDN market was valued at approximately $26–32 billion in 2025 and is projected to reach $73–164 billion by 2033, with CAGRs consistently in the 11–19% range, driven by streaming growth, cloud computing adoption, 5G rollout, edge computing expansion, and new internet users in emerging markets.

What are the Main CDN Providers in the Market?

How to Choose a CDN

Most CDN guides stop before answering the question developers are actually asking: which CDN should I use? Here’s a practical framework.

Traffic volume is your first filter. For small sites under 1TB/month, Cloudflare’s free tier covers unlimited bandwidth, DDoS protection, and SSL.

For medium-traffic sites (1–50TB/month), BunnyCDN and KeyCDN offer competitive flat-rate pricing. For large enterprises, Akamai, Fastly, and Amazon CloudFront are the serious contenders with enterprise SLAs.

Geographic focus matters more than total PoP count. Always check PoP density in your specific target markets, not just global headline numbers. A CDN with 300 PoPs concentrated in North America may underperform in Southeast Asia or India.

Content type drives technical requirements. Video-heavy sites and live streaming need streaming-specific optimizations (Fastly, CDN77, Akamai). API-heavy apps benefit most from edge compute (Cloudflare Workers, Fastly Compute@Edge). E-commerce sites prioritize dynamic acceleration and instant cache purging.

Budget model: Amazon CloudFront is pay-as-you-go; BunnyCDN/KeyCDN are flat-rate; Cloudflare starts free; Akamai and Fastly are enterprise-contract.

Security requirements: Cloudflare and Akamai lead on DDoS protection, WAF, and bot management depth.

Developer experience: Fastly and Cloudflare have the best CLI tooling and APIs for programmatic control.

Quick Decision Checklist:

• Is my audience global or primarily regional? (Regional → check specific PoP coverage)
• Am I serving static files, dynamic content, or live video? (Match to CDN specialization)
• Do I need edge compute for application logic? (Cloudflare Workers or Fastly Compute@Edge)
• Is DDoS/WAF protection a primary security requirement? (Cloudflare or Akamai)
• What’s my monthly traffic volume and preferred budget model? (Scale to provider tier)

Challenges of Using a Content Delivery Network (CDN)

CDNs deliver substantial benefits, but they come with real trade-offs that architects and developers need to understand.

• Cache invalidation complexity Cached copies at edge nodes don’t update until TTL expires or you explicitly purge them. Solutions: short TTLs, cache versioning with content hashes, and instant purge APIs (Fastly, Cloudflare).
• Dynamic content limitations CDNs are less effective for highly personalized content. Edge compute and ESI help, but require careful architecture and add operational complexity.
• Cost unpredictability With pay-per-use providers, traffic spikes translate directly into billing spikes. Understand your traffic patterns before selecting a pricing model.
• Vendor lock-in Migrating CDN providers can require DNS changes, cache-warming strategy overhauls, edge logic rewrites, and security rule rebuilds.
• Technical expertise requirements Advanced CDN features require experienced engineers. Misconfigured CDNs can hurt performance or create security gaps.
• Geographic coverage gaps Some providers have thin coverage in sub-Saharan Africa, parts of South Asia, and rural areas globally.
• Regulatory and compliance GDPR in Europe and data residency requirements in India and China can constrain which CDN providers and data centers you can use.

FAQs
