Agentic RAG: How It Works, Architecture & Use Cases Guide

Traditional Retrieval-Augmented Generation (RAG) helped artificial intelligence by connecting Large Language Models to outside databases. Rather than relying only on what Generative AI learned during training, standard RAG pulls facts from stored documents to help answer questions.

However, this simple setup fails when a question takes multiple steps to solve. Standard RAG follows a strict, one-way path: search once, grab data, and write an answer. If that first search gets incomplete or returns bad information, the system cannot stop to fix its search.

This problem created the agentic RAG system. Agentic retrieval-augmented generation adds autonomous AI agents into the search process. Even with a single lookup, an agentic RAG setup lets an LLM check retrieved data, rewrite searches, and use extra tools. While this flexible process helps find better data and reduces errors, the final answer quality still depends on the source facts and model strength.

What Is RAG?

RAG links an LLM with external data so it can pull in relevant, current context when answering questions. The system first finds information related to the user’s prompt and then feeds those details to the model to draft a response. Traditional RAG relies on a straightforward, one-way lookup, which works well for basic questions and simple document searches.

How Traditional RAG Works

Retrieval-Augmented Generation (RAG in AI) improves how a Large Language Model (LLM) answers questions by connecting it to an outside Knowledge Base. Standard RAG artificial intelligence transforms a user’s typed Query into a numerical format called a Vector Embedding using an Embedding Model.

Next, the system searches a Vector Database using Semantic Search to find document parts that match the meaning of the request. This process, known as Retrieval, pulls matching text as Context and sends it directly to the model. Finally, the LLM generation step produces an answer based on those retrieved facts rather than memory alone.

Where Traditional RAG Falls Short

While standard retrieval-augmented generation works well for basic facts, traditional RAG struggles with complex tasks.

●     Fixed retrieval: It uses a single-pass path. It searches once and moves straight to generating an answer.

●     Limited query planning: The system cannot break difficult questions into logical sub-tasks.

●     Multiple-source limitations: It struggles to gather and connect data spread across different systems.

●     Lack of iterative retrieval: If the first search returns bad context, the system cannot stop to run a new search.

These gaps are exactly why agentic RAG was developed.

What Is Agentic RAG?

Agentic RAG Meaning

Agentic RAG combines standard Retrieval-Augmented Generation with agentic AI to create flexible, self-directing search workflows. In simple terms, it means combining RAG with AI agents to replace rigid, one-step lookups with active decision-making. Rather than searching a database once and writing a response immediately, agentic RAG systems allow a Large Language Model (LLM) to analyze a request, plan necessary steps, run multiple targeted searches, and refine queries as needed. This approach turns static context retrieval into an adaptive, closed-loop process designed for complex tasks.

What Is a RAG Agent?

A RAG agent is an autonomous AI component that directs information retrieval, evaluation, and synthesis. Businesses can use these autonomous systems to handle complex workflows, connect with enterprise tools, and automate multi-step tasks through AI agent development services. In practice, these agents handle tasks that go beyond a simple document search.

Key features of agent RAG setups include:

●        Planning: A RAG AI agent breaks complex requests down into smaller sub-tasks.

●        Tool Calling: Using function calling, RAG agents query vector stores, run SQL queries, or check live web APIs.

●      Context-aware Generation: The system evaluates retrieved data and rewrites search prompts if initial context is incomplete.

As outlined in IBM Think’s Agentic RAG Overview and Microsoft’s AI Agents for Beginners Guide, this combination moves retrieval from passive document fetching to active problem-solving.

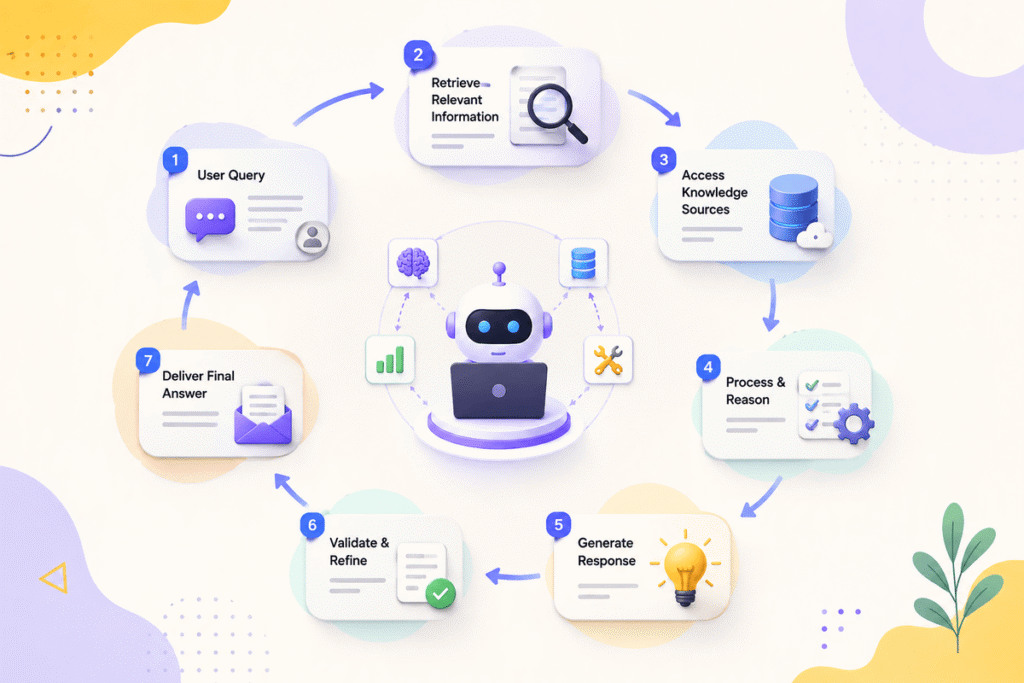

How Does Agentic RAG Work?

An agentic RAG system turns simple document lookups into a step-by-step reasoning loop. Despite running a single, blind search and guessing an answer, agentic retrieval checks facts along the way to make sure it has the right context before writing a final response.

1. Understand the User Query

When you ask a question, agentic RAG is built to figure out what you need first. The system checks whether your request is a simple fact lookup or a complex problem requiring a deeper search.

2. Plan the Retrieval Strategy

Rather than jumping straight into a search, the system takes a moment to autonomously plan their next steps. The main LLM decides which sources, such as a private Knowledge Base, live Web Results, or internal logs, are most likely to hold accurate details.

3. Break Complex Queries Into Tasks

For tricky questions with multiple parts, the system splits your prompt into smaller pieces. Using smart Query Routing, it hands each smaller task off to the best tool or database available.

4. Select Tools and Data Sources

The system uses tool or function calls to connect with outside programs. These rag ai agents run function calls and structured outputs to search a Vector Database, query relational data using SQL, or pull fresh details through an API.

5. Retrieve Information

Using Semantic Search alongside an Embedding Model, the software executes an agentic search. After pulling raw text chunks, retrieval-augmented generation agents use Re-ranking tools to score the facts and toss out useless fluff.

6. Evaluate the Results

An agentic RAG system never assumes its first search was perfect. By keeping full control of its reasoning process, it double-checks whether the gathered context actually answers your question or leaves missing pieces.

7. Refine the Query

If the initial info comes up short, agentic RAG can trigger an automatic fix. The agent rewrites its search terms, changes filters, and runs another lookup until it gathers solid proof.

8. Generate the Final Answer

Once all the facts are collected and double-checked, the system passes the verified context to the main model to write a clear, accurate, and fully grounded answer.

Agentic RAG Architecture

Core Components of an Agentic RAG System

Building agentic RAG setups requires combining standard search components with active control tools. At the center is an LLM acting as an agent controller. This main unit uses short-term and long-term Memory, along with Semantic Caching, to store prior questions and speed up repeat searches.

User → Agent → Planner → Retriever/Tools → Knowledge Sources → Evaluation → LLM → Response

The core agentic RAG framework relies on several key elements working together:

●     Retrieval Tools: An Embedding Model converts text into a Vector Embedding so a Retriever can scan a Vector Database or Knowledge Base.

●     Action Tools: Using Function Calling, the system connects to an API, External Databases, or web tools to gather extra facts.

●     Observability: Tracking software monitors each step, helping developers debug how RAG tooling handles data.

Together, these parts create a flexible agentic RAG system built for complex tasks.

Agentic RAG Pipeline

The agentic RAG architecture replaces linear lookups with a dynamic control loop:

1. User: Submits a complex question.
2. Agent: Receives the input and starts the reasoning loop.
3. Planner: Breaks the request into smaller tasks.
4. Retriever/Tools: Issues calls to internal vector stores or external APIs.
5. Knowledge Sources: Pulls raw data from private databases or web pages.
6. Evaluation: Checks if the gathered context answers the prompt.
7. LLM: Combines the verified facts with the prompt.
8. Response: Sends a clear, accurate answer back to the user.

This structured agent rag architecture ensures every step stays focused on accurate data retrieval.

Types of Agents Used in Agentic RAG

Routing Agents

Routing agents analyze incoming prompts and direct them to the appropriate search tool or database. By using smart Query Routing, these RAG agents decide whether a prompt needs a simple vector search, an API call, or a direct LLM answer.

This prevents unnecessary compute usage by sending basic lookups down simpler pathways.

Query Planning Agents

Query planning agents handle complex requests by breaking them into smaller sub-tasks. When a user asks a multi-part question, the planning module maps out a step-by-step strategy. It sends smaller sub-questions to specific sources and gathers all returned facts before compiling a final answer.

ReAct Agents

Combining reasoning and action, ReAct agents decide which tools to call, inspect the returned search results, and dynamically adjust their next steps.

Rather than following a fixed script, they evaluate incoming context in real time. If a search yields incomplete facts, a ReAct agent rewrites the prompt and runs another query, creating a tight feedback loop for active fact-checking.

Plan-and-Execute Agents

Plan-and-execute agents separate long-term strategy from task execution.

First, a main planning agent creates an entire workflow outline up front. Then, secondary tools execute each task step without needing to consult the main model after every single action. This two-tier approach helps reduce latency and keeps costs down during longer workflows.

Multi-Agent Systems

When building RAG agents with LLMs for enterprise operations, teams often deploy a multi agent RAG system.

In this setup, different AI Agents focus strictly on specialized jobs such as query routing, document retrieval, SQL translation, or answer verification. Working together, these specialized agents manage complex business tasks that would overwhelm a single system.

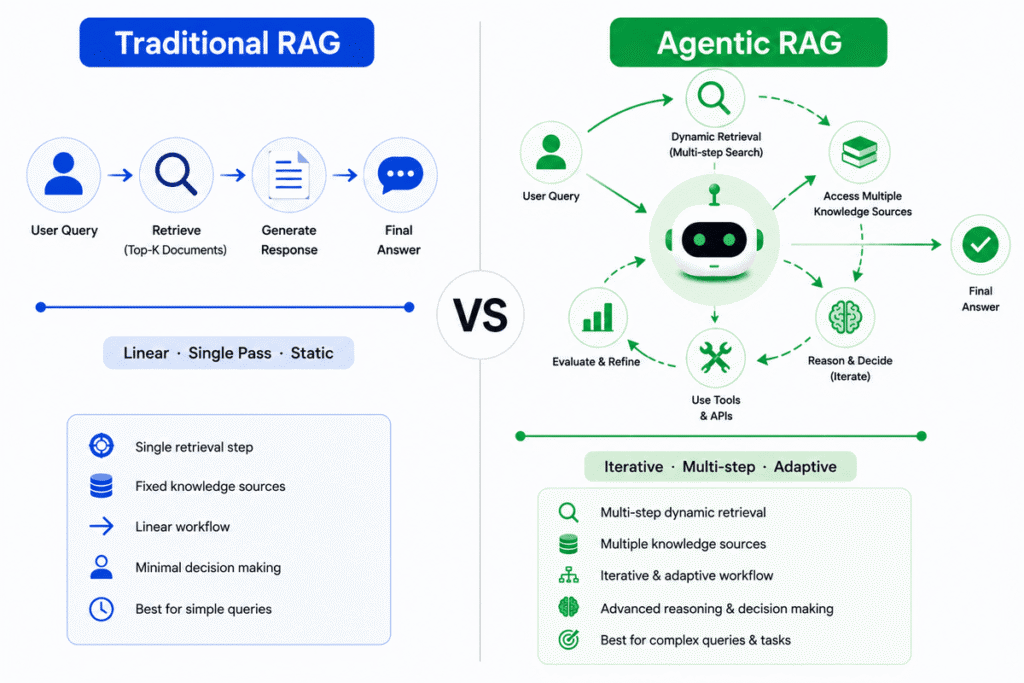

 Agentic RAG vs Traditional RAG

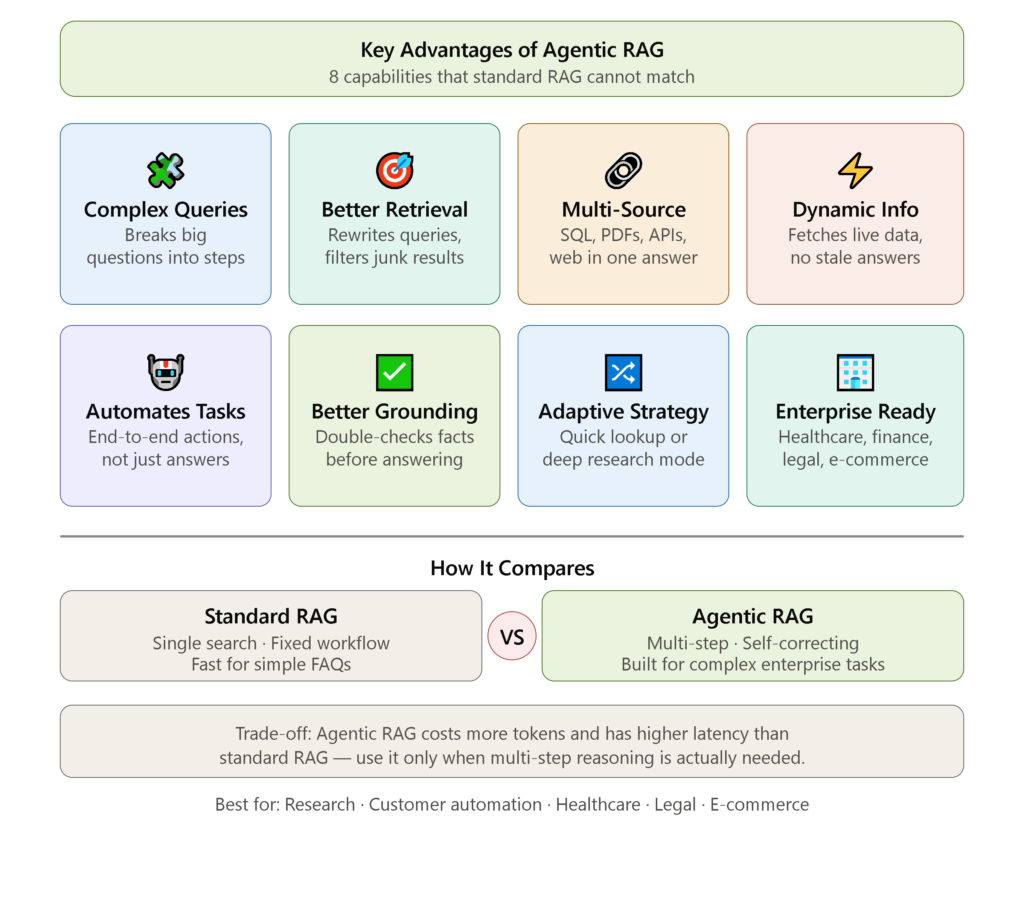

Key Advantages of Agentic RAG

Agentic RAG makes computer search much smarter. Rather than just grabbing random articles, it can plan out steps, make choices, and find the best answers for you.

1. Handles Complex Queries

 Normal search tools get confused when you ask a big, multi-part question. They try to search for everything in one go, which usually brings back messy or half-baked answers.

Agentic RAG fixes this by breaking a big question into smaller pieces. The agent figures out the first part, looks at what it learned, and uses that new information to decide what to search for next.

This step-by-step thinking helps it solve tricky problems that basic search completely misses.

2. Improves Retrieval Quality

Regular search often pulls in junk or off-topic information on the first try. Agentic RAG checks its own work before it writes an answer.

If the first batch of information is not helpful, the agent does not give up. It rewrites your question using better words, tries new search tricks, and sorts through the results until it finds solid facts.

3. Connects Multiple Data Sources

 Basic tools can usually search only one folder or database at a time. That is a problem for companies that store info across spreadsheets, files, and separate apps.

Agentic RAG picks the best tool for the job. It can look up a spreadsheet row, read a PDF guide, check a connected chart, or search the live web to bring all the facts together in one clean answer.

4. Provides More Dynamic Information

Saved files get old fast. If you ask about something that happened this morning, a basic database will only give you old answers.

Agentic RAG fixes this by grabbing fresh data the second you ask. The agent can check live websites, apps, and feeds directly, so you always get the latest facts without someone having to update the system by hand.

5. Automates Multi-Step Workflows

Agentic RAG does more than answer questions. It can actually do jobs across different apps.

Because it knows how to use software tools, it can finish full tasks on its own. For example, a customer service helper can read a return policy, look up a receipt in the database, check tracking with the post office, and send the customer a finished answer without a human having to do the clicking.

6. Improves Answer Grounding

Computers can make things up when they are missing the facts. While Agentic RAG cannot stop every single mistake, it drastically lowers the chances of wrong answers.

It does this by double-checking everything. The agent makes sure all the facts are in front of it before writing, and then checks its finished answer against the original source to make sure every word is backed up.

7. Adapts to Different Retrieval Strategies

Not every question needs a deep investigation, and running a huge search for a simple question wastes time.

Agentic search changes its style based on what you ask. It can do a quick lookup for a simple definition, or switch to deep research for a tricky problem.

If its first search path hits a dead end, it simply changes tactics and tries a different route until it finds what you need.

8. Supports Enterprise Applications

Because Agentic RAG is smart, connects to many tools, and checks its own work, big companies can use it for serious work.

It handles big company search systems, customer support desks, hospital medical notes, bank market tracking, legal research, computer coding, and online store management.

Agentic Retrieval Techniques

Query Rewriting and Decomposition

Agentic search relies on iterative query refinement to fix poor or ambiguous prompts. If an initial lookup yields bad data, the agent rewrites search terms to find better matches. For multi-part prompts, query decomposition breaks one big question into smaller sub-queries for targeted processing.

Query Routing and Search Mechanics

Using adaptive retrieval orchestration, the agent evaluates incoming requests and directs them to the best tool via query routing. Systems combine Semantic Search and keyword matching through Hybrid Search across a Vector Database. Afterward, Re-ranking models re-order retrieved text chunks to ensure the most relevant context sits at the top.

Advanced Agentic Context Retrieval

Modern agentic information retrieval extends beyond simple text blocks:

●Multi-Hop Retrieval: Connects facts across multiple documents to answer multi-layered questions.

●Agentic Chunking: Uses an Embedding Model to group data by true semantic meaning rather than fixed word counts.

●Knowledge Graph Retrieval: Maps entity relationships to provide clear context for complex topics.

Real-Time Integration

To support dynamic knowledge integration, agentic document retrieval connects directly to live web tools and external systems. Through API access and Web Search, agents fetch current updates to maintain real-time source grounding across fast-changing data sources.

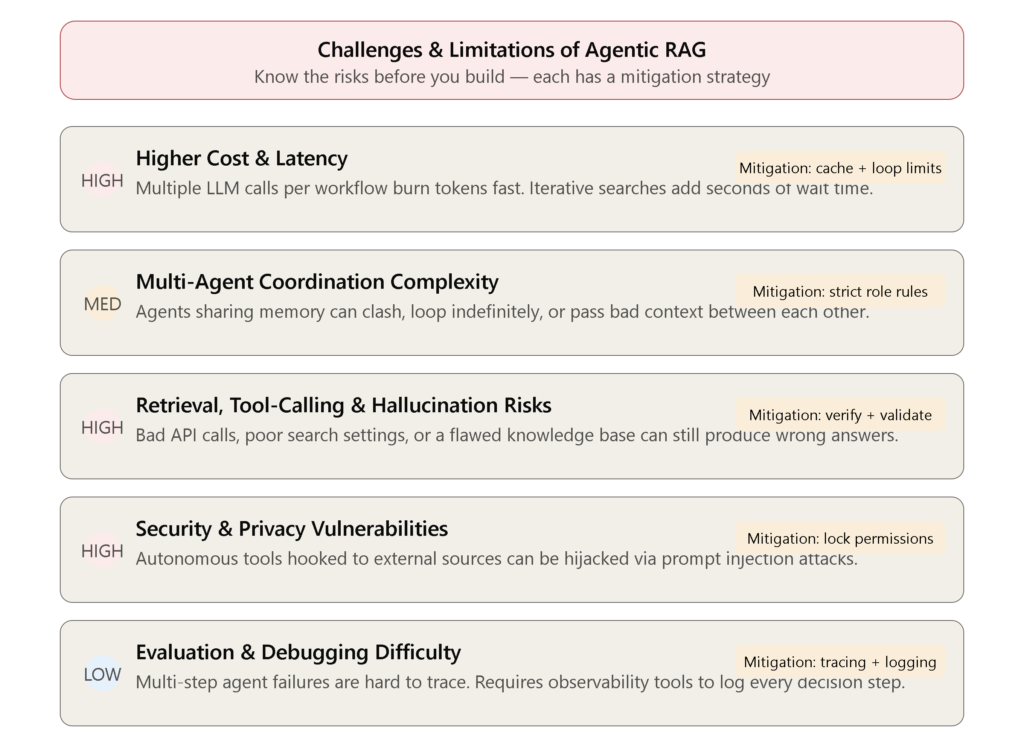

Challenges and Limitations of Agentic RAG

Higher Cost and Latency

Running an agentic RAG implementation takes a lot more computing power than standard search. The system makes repeated calls to an LLM as it rewrites search words, tests different paths, and checks its own work. All those extra steps quickly burn through API tokens.

These continuous loops also slow things down. Despite getting an answer in a split second, users often have to wait several seconds while the system works through its plan.

More Complex Workflows and Multi-Agent Coordination

Managing a group of AI Agents is tricky. When different tools handle planning, searching, and fact-checking, they need to share data smoothly. If they don’t, they can get confused, pass bad information back and forth, or get stuck in endless loops.

In larger setups, agents can even clash over shared system memory, making the whole process unpredictable if strict rules aren’t set.

Retrieval, Tool-Calling, and Hallucination Risks

Even with careful design, automated tools make mistakes. A bad API command can break a database connection, and poor search settings might pull in useless background chatter rather than real facts.

While extra check-ups reduce mistakes, they cannot stop hallucinations if the original Knowledge Base contains wrong information. If bad facts go in, bad answers come out.

Security and Privacy Vulnerabilities

Hooking autonomous tools up to external Data Sources opens up real security risks. Sneaky user inputs can trick an agent into revealing private records or running unauthorized commands.

Major security standards, including the NIST AI Risk Management Framework and the OWASP Top 10 for LLM Applications, point out these exact dangers. Teams must lock down permissions and keep humans in the loop to stay safe.

Evaluation and Debugging

Figuring out why a multi-step agent failed is hard work. You need good Observability software to log every single thought, search, and action the tool takes.

When an answer comes out wrong, developers have to dig through those step-by-step logs to see where things broke down. Finding out if the problem was a bad initial plan, a failed document search, or weak reasoning is a big part of learning agentic RAG best practices.

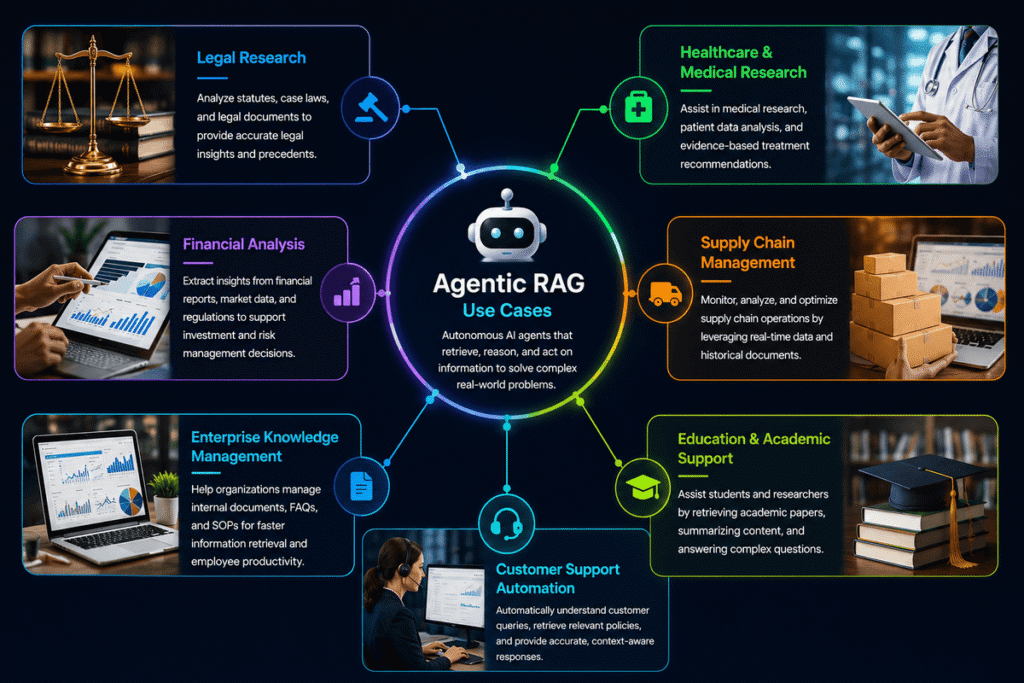

Agentic RAG Use Cases

Deploying agentic RAG applications across industries helps businesses solve complex data problems. By moving past simple lookups, these systems handle multi-step research and automated actions across specialized tools.

Customer Service and Enterprise Search

In customer service automation, an agent checks user accounts, reads product manuals, and interacts with a CRM to resolve issues. Rather than handing off simple FAQ links, AI Agents check live status updates and perform account adjustments through APIs.

For internal teams, the best agentic RAG platforms for enterprise search scan distributed document stores. They query a central Knowledge Base, pull context from separate departments, and verify internal policies to answer complex workforce questions.

 E-commerce

Among the top use cases for agentic RAG in e-commerce, dynamic personal shopping stands out. Agents cross-reference user search habits with real-time inventory databases to offer personalized product recommendations.

Healthcare and Financial Services

In Healthcare, systems analyze patient history, scan medical journals, and check drug interaction databases to support clinical decisions.

In Financial Services, agents pull metrics from company filings, monitor live news, and run calculations to detect fraud or analyze market risks.

Legal Research and Software Development

In Legal Research, agents read long contracts, cross-check precedent cases, and flag compliance risks across legal libraries.

For Software Development, systems help engineers debug code, review pull requests, and query developer docs to speed up feature delivery.

How to Deploy Agentic RAG for Customer Service Automation

Learning how to deploy agentic RAG for customer service automation means building a system that can take real action, not just quote help articles.

For businesses building this type of system, AI chatbot development services can combine RAG, multi-agent architecture, CRM integrations, and real-time enterprise data.

Setting Up the Deployment Pipeline

Deployment starts by organizing company help files into a Vector Database. An embedding model indexes policy documents to build a searchable Knowledge Base. Engineers then turn on Function Calling, which gives AI Agents safe access to the company CRM and internal shipping or account APIs.

The core system relies on an LLM that acts as an orchestrator. When a user submits a ticket, the model evaluates the goal, splits multi-part questions into smaller tasks, and uses Query Routing to send commands to the right tool.

Before sending a reply, the model checks the retrieved policy text to ensure accuracy. Teams also set up a Human-in-the-loop workflow to forward hard or risky tickets straight to human staff. Finally, developers track every step using Observability tools to log decisions and fix bad search results.

Agentic RAG Implementation and Frameworks

Building Agentic RAG With LangChain and LangGraph

Developers often start building agentic RAG solutions using open-source Python libraries. A LangChain agentic RAG setup combines language models with search tools, memory stores, and vector indices.

When workflows require complex logic, LangChain pairs with LangGraph, a framework designed to build stateful multi-agent applications using graph-based loops.

Agentic RAG With LlamaIndex

For data-heavy projects, LlamaIndex offers specialized RAG tooling focused on advanced retrieval strategies. Using LlamaIndex, developers can build query engines that rewrite prompts, route tasks dynamically, and parse structured documents.

Multi-Agent RAG With Microsoft AutoGen

When an agentic RAG implementation demands multiple specialized workers, developers turn to Microsoft AutoGen. This framework allows multiple autonomous AI Agents to communicate, review code, and execute tools as a team.

What Are the Top Platforms Supporting Agentic RAG Architecture?

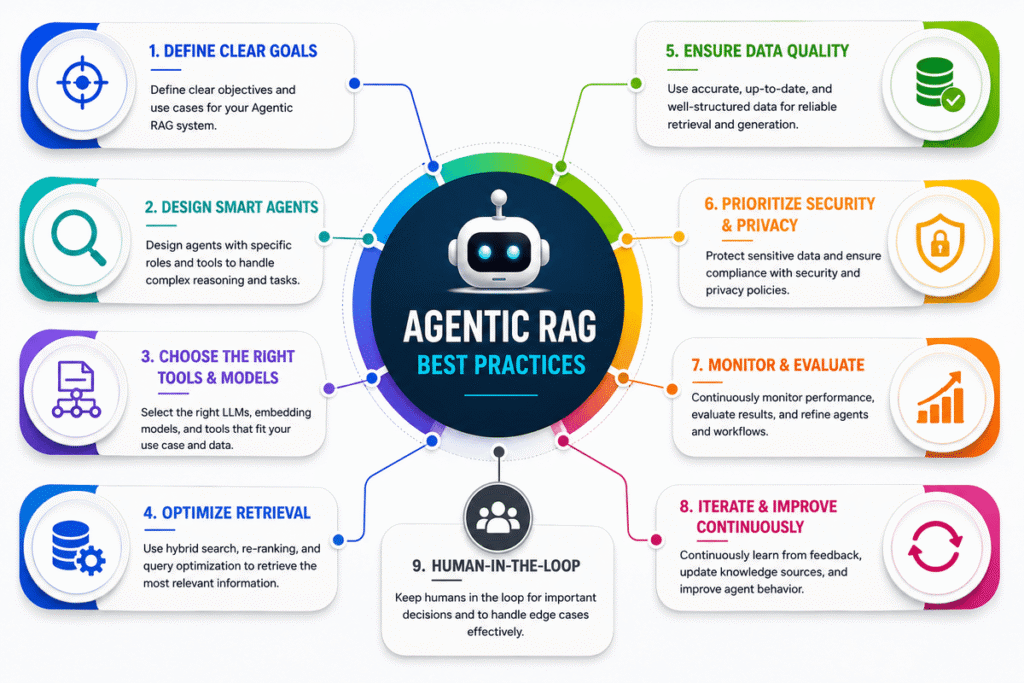

Agentic RAG Best Practices

Core Implementation Rules

When building agentic rag systems, start with traditional RAG first. Simple setups handle basic lookups well, saving time and keeping costs low.

Add AI Agents only where tasks require multi-step planning or external actions. Limit Tool Calling access so agents only reach necessary API endpoints, which prevents unintended system changes.

System Controls and Monitoring

To prevent infinite loops, set strict loop limits on how many times an agent can rewrite queries or search a Knowledge Base. Always validate retrieved evidence to confirm search results answer the query before generating a response.

Safeguard sensitive records by protecting data permissions across every integration. Finally, track every step using Observability platforms and keep a Human-in-the-loop setup to handle high-risk or low-confidence decisions.

Conclusion

A business should pick an agentic RAG system over standard retrieval augmented generation when a task needs real problem-solving rather than a basic lookup. Standard search works well for grabbing quick facts from a single document. However, agentic retrieval uses smart AI agents to tackle much harder jobs.

Companies should move to agentic RAG when their daily work means splitting big questions into smaller tasks, connecting directly to outside software, or checking search results to fix mistakes before giving a final answer.

Frequently Asked Questions
